Numpy Reshape Function

Introduction

The reshape() function in the NumPy library allows you to change the shape of an array without altering its data. This powerful function helps you reorganize array elements into different dimensions based on your specific needs. Whether you need to convert a one-dimensional array into a matrix or create a multi-dimensional array for data processing, the reshape() function provides a flexible solution.

In this lab, we will explore the practical applications of the reshape() function, understand its syntax, and learn how to use it effectively with different parameters.

Skills Graph

Getting Started with NumPy and Creating Arrays

Before we can reshape arrays, we need to understand what NumPy arrays are and how to create them. NumPy (Numerical Python) is a powerful library that provides support for large, multi-dimensional arrays and matrices, along with a collection of mathematical functions to operate on these arrays.

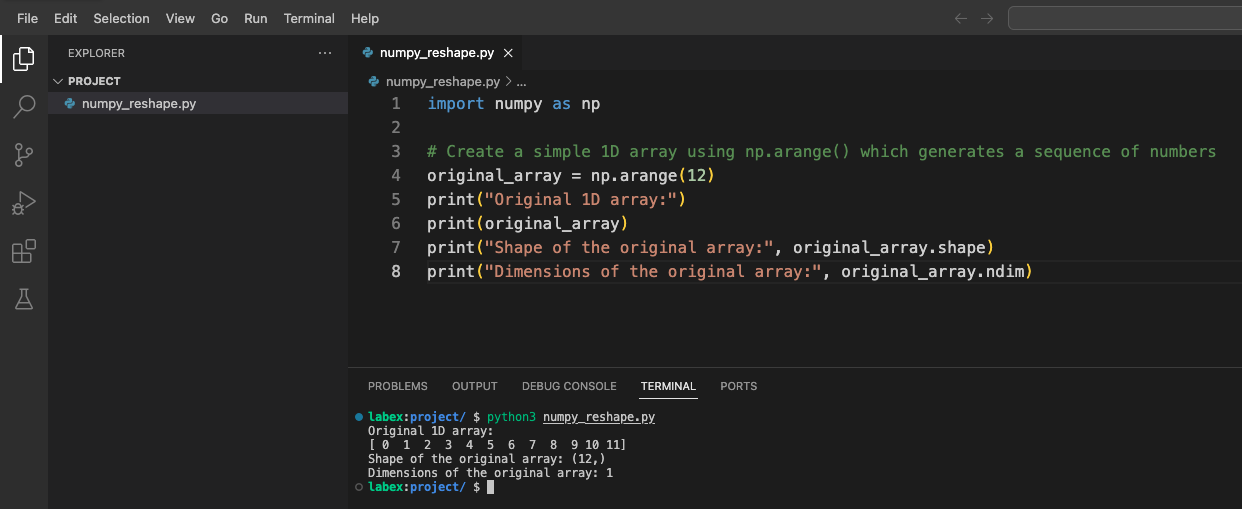

Let's start by creating a new Python file in the WebIDE. Click on the "Explorer" icon in the left sidebar, then click on the "New File" button. Name your file numpy_reshape.py.

Now, let's import the NumPy library and create a basic array:

import numpy as np

## Create a simple 1D array using np.arange() which generates a sequence of numbers
original_array = np.arange(12)
print("Original 1D array:")
print(original_array)
print("Shape of the original array:", original_array.shape)
print("Dimensions of the original array:", original_array.ndim)

Open the terminal in the WebIDE and run your script:

python3 numpy_reshape.py

You should see output similar to this:

Original 1D array:
[ 0  1  2  3  4  5  6  7  8  9 10 11]
Shape of the original array: (12,)
Dimensions of the original array: 1

Let's understand what's happening here:

• np.arange(12) creates a one-dimensional array with values from 0 to 11
• array.shape tells us the dimensions of the array (12 elements in a single dimension)
• array.ndim tells us the number of dimensions (1 in this case)

Basic Reshaping - Converting 1D Arrays to 2D

Now that we understand the basics of NumPy arrays, let's explore the reshape() function. This function allows us to change the shape of an array without changing its data.

Open your numpy_reshape.py file and add the following code:

import numpy as np

## Create a simple 1D array
original_array = np.arange(12)
print("Original 1D array:")
print(original_array)
print("Shape of the original array:", original_array.shape)
print("Dimensions of the original array:", original_array.ndim)
print("-" * 50)  ## Separator line

## Reshape the array to a 2D array with 3 rows and 4 columns
reshaped_3x4 = np.reshape(original_array, (3, 4))
print("Reshaped array (3x4):")
print(reshaped_3x4)
print("Shape of the reshaped array:", reshaped_3x4.shape)
print("Dimensions of the reshaped array:", reshaped_3x4.ndim)
print("-" * 50)  ## Separator line

## Reshape the array to a 2D array with 4 rows and 3 columns
reshaped_4x3 = np.reshape(original_array, (4, 3))
print("Reshaped array (4x3):")
print(reshaped_4x3)
print("Shape of the reshaped array:", reshaped_4x3.shape)
print("Dimensions of the reshaped array:", reshaped_4x3.ndim)

Run your script in the terminal:

python3 numpy_reshape.py

You should see output showing how the original array has been reshaped into different 2D structures.

Let's understand what's happening:

1. We first created a 1D array with 12 elements
2. We reshaped it into a 3×4 matrix (3 rows, 4 columns)
3. We then reshaped it into a 4×3 matrix (4 rows, 3 columns)

In both cases, the total number of elements remains the same (12), but the organization changes. The reshape() function requires that the new shape is compatible with the original array size. This means the product of dimensions in the new shape must equal the total number of elements in the original array.

Advanced Reshaping - Creating 3D Arrays

Now let's move on to more advanced reshaping by creating three-dimensional arrays. 3D arrays are essentially arrays of 2D arrays and are useful for representing volumes, time series of images, or other complex data structures.

Add the following code to your numpy_reshape.py file:

import numpy as np

## Create a simple 1D array
original_array = np.arange(24)
print("Original 1D array:")
print(original_array)
print("Shape of the original array:", original_array.shape)
print("-" * 50)  ## Separator line

## Reshape into a 3D array with dimensions 2x3x4
## This creates 2 blocks, each with 3 rows and 4 columns
reshaped_3d = np.reshape(original_array, (2, 3, 4))
print("Reshaped 3D array (2x3x4):")
print(reshaped_3d)
print("Shape of the 3D array:", reshaped_3d.shape)
print("Dimensions of the 3D array:", reshaped_3d.ndim)
print("-" * 50)  ## Separator line

## Accessing elements in a 3D array
print("First block of the 3D array:")
print(reshaped_3d[0])
print("\nSecond block of the 3D array:")
print(reshaped_3d[1])
print("\nElement at position [1,2,3] (second block, third row, fourth column):")
print(reshaped_3d[1, 2, 3])

Run your script again:

python3 numpy_reshape.py

The output will show how a 1D array with 24 elements can be transformed into a 3D structure. This structure can be visualized as 2 blocks, each containing a 3×4 matrix.

Understanding 3D arrays:

• The first dimension (2) represents the number of "blocks" or "layers"
• The second dimension (3) represents the number of rows in each block
• The third dimension (4) represents the number of columns in each row

This structure is particularly useful for image processing (where each "block" might be a color channel), time series data (where each "block" might be a time point), or other scenarios requiring multiple matrices.

Understanding Order Parameters in Reshape

When reshaping arrays, NumPy provides an additional parameter called order that controls how elements are read from the original array and placed into the reshaped array. There are two main ordering conventions:

1. C-like ordering (row-major): The default in NumPy, where the last axis index changes fastest
2. Fortran-like ordering (column-major): Where the first axis index changes fastest

Let's explore both ordering methods by adding this code to your numpy_reshape.py file:

import numpy as np

## Create a 1D array
original_array = np.arange(12)
print("Original 1D array:")
print(original_array)
print("-" * 50)  ## Separator line

## Reshape using C-style ordering (default)
c_style = np.reshape(original_array, (3, 4), order='C')
print("Reshaped array with C-style ordering (row-major):")
print(c_style)
print("-" * 50)  ## Separator line

## Reshape using Fortran-style ordering
f_style = np.reshape(original_array, (3, 4), order='F')
print("Reshaped array with Fortran-style ordering (column-major):")
print(f_style)
print("-" * 50)  ## Separator line

## Alternative syntax using the array's reshape method
array_method = original_array.reshape(3, 4)
print("Using the array's reshape method:")
print(array_method)
print("-" * 50)  ## Separator line

## Using -1 as a dimension (automatic calculation)
auto_dim = original_array.reshape(3, -1)  ## NumPy will figure out that -1 should be 4
print("Using automatic dimension calculation with -1:")
print(auto_dim)
print("Shape:", auto_dim.shape)

Run your script to see the differences:

python3 numpy_reshape.py

Key points to understand:

1. C-style ordering (row-major): Elements are placed row by row. This is the default in NumPy.
2. Fortran-style ordering (column-major): Elements are placed column by column.
3. Array method syntax: Instead of using np.reshape(array, shape), you can use array.reshape(shape).
4. Automatic dimension calculation: Using -1 for one of the dimensions tells NumPy to automatically calculate that dimension based on the array's size.

The order parameter is particularly important when:

• You're working with very large arrays and memory layout matters for performance
• You're interfacing with other libraries or languages that use a different default ordering
• You need to ensure compatibility with specific algorithms

Summary

In this lab, we explored the versatile reshape() function in NumPy, which allows us to reorganize array data into different dimensions without changing the underlying data. Here's what we learned:

1. Basic reshaping: How to transform one-dimensional arrays into two-dimensional matrices with different row and column configurations.

2. Advanced reshaping: Creating three-dimensional arrays for more complex data structures, which are useful for representing volumes, time series of images, or other multi-dimensional data.

3. Order parameters: Understanding the difference between C-style (row-major) and Fortran-style (column-major) ordering, and how they affect how elements are arranged in the reshaped array.

4. Alternative syntax: Using both the np.reshape() function and the array's .reshape() method to achieve the same results.

5. Automatic dimension calculation: Using -1 as a placeholder to let NumPy automatically calculate the appropriate dimension.

The reshape() function is a fundamental tool in data manipulation with NumPy, enabling efficient reorganization of data for various applications in data science, machine learning, and scientific computing. Understanding how to reshape data properly is essential for preparing inputs for models, visualizing multi-dimensional data, and performing complex mathematical operations on arrays.
